Please note that this is a generic installation guide suitable for the majority of our surface-mounted fixtures. For product-specific details or alignment requirements, refer to the individual fixture’s installation guide.

Installation Steps:

1. Prepare the Cable

   • Ensure the electrical cable is fed through the central hole of the wall plate before mounting.

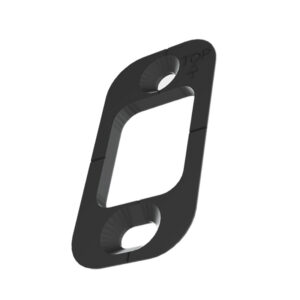

2. Position the Wall Plate

   • Orient the wall plate either vertically or horizontally to match the intended orientation of the fixture.

   • The engraved guidelines on the wall plate should be facing outward and can be used to help level the fixture on the wall.

3. Fix the Wall Plate

   • Once aligned, secure the wall plate using appropriate fixing hardware for the wall surface (e.g., plaster, brick, timber).

4. Make Cable Connections

   • After the wall plate is securely mounted, connect the electrical wiring as per local regulations and the fixture’s wiring guide.

5. Mount the Fixture

   • Align the fixture over the backplate by hooking the top first and then push it firmly to the left into the mounting grooves.

6. Secure the Fixture

   • Tighten the grub screw using the correct size Allen key to lock the fixture in place.

7. Final Adjustments

   • Ensure the fixture is properly aligned. If necessary, adjust the wall plate positioning before fully securing the fixture.
