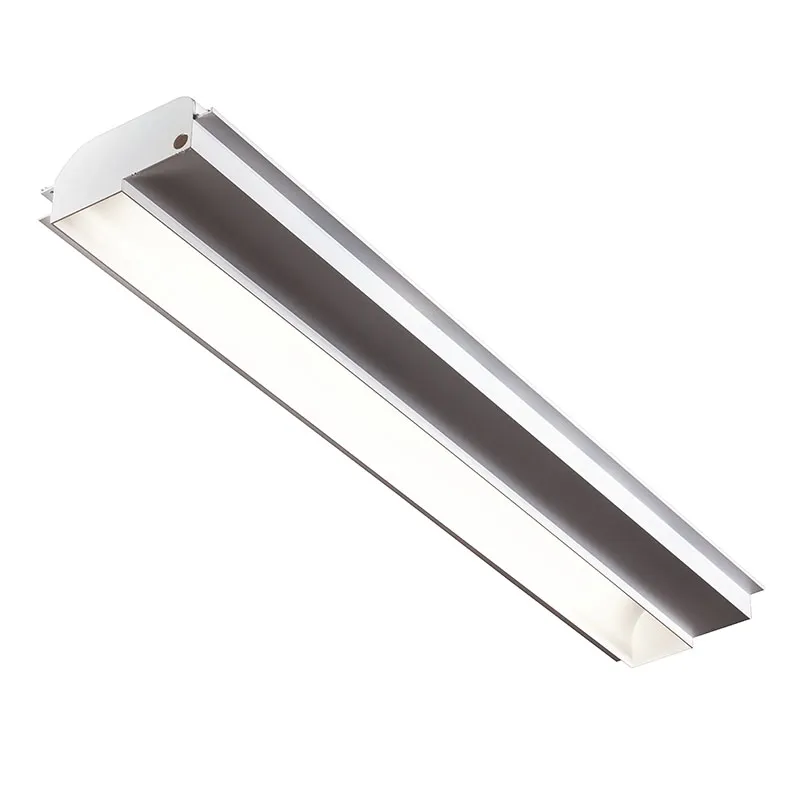

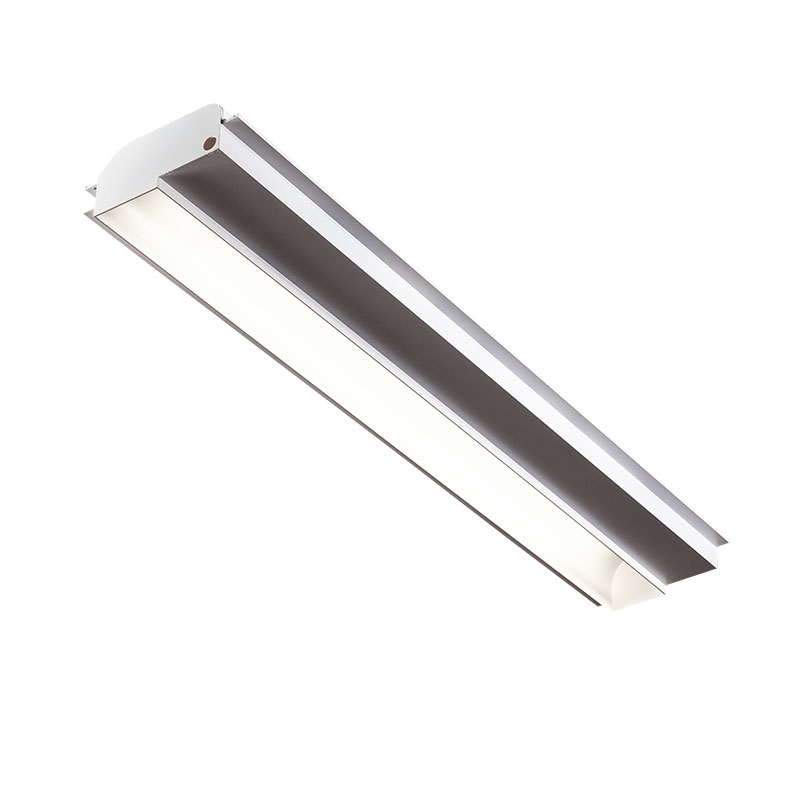

Skyline Horizon

Recessed Linear Light. Also capable of been used to extract steam and odour.

Features:

Glare free wall washing and general illumination

100 mm aperture (no diffuser) with curved reflector

Magnetically fixed LED light source

With option to incorporate inlet for Exhaust ducting

High Output (15 W / m) or Super High Output (29 W / m) versions

Custom lengths available up to 6 metres

Finishes --

white, custom powder coat

CODE  …  4177

WATTAGE  …  29 W

CCT and LUMEN OUTPUT  …  2700K - 2805 Lm P/M 3000K - 2805 Lm P/M 4000K

CRI  …  80

IP RATING  …  IP20, IP44

DIMMABLE  …  Yes, 0 – 10 V, DALI

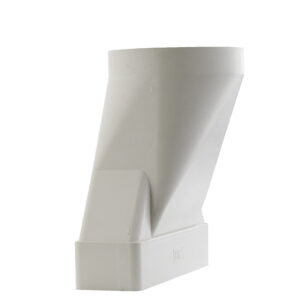

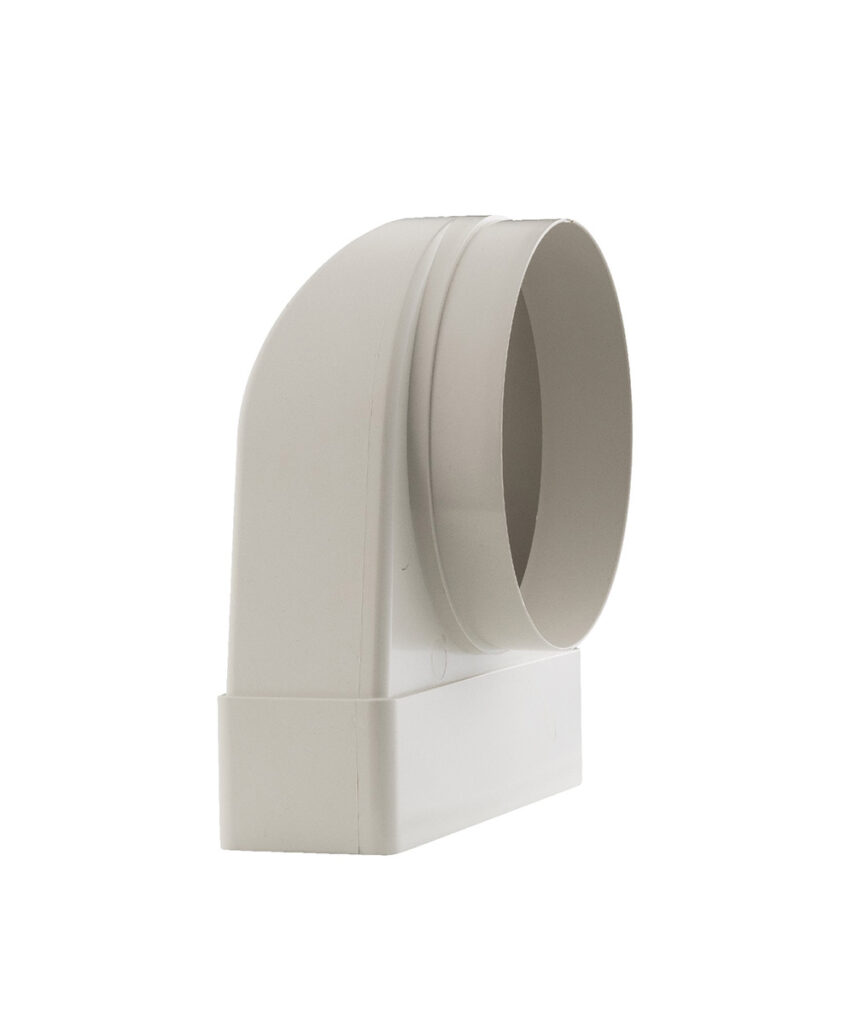

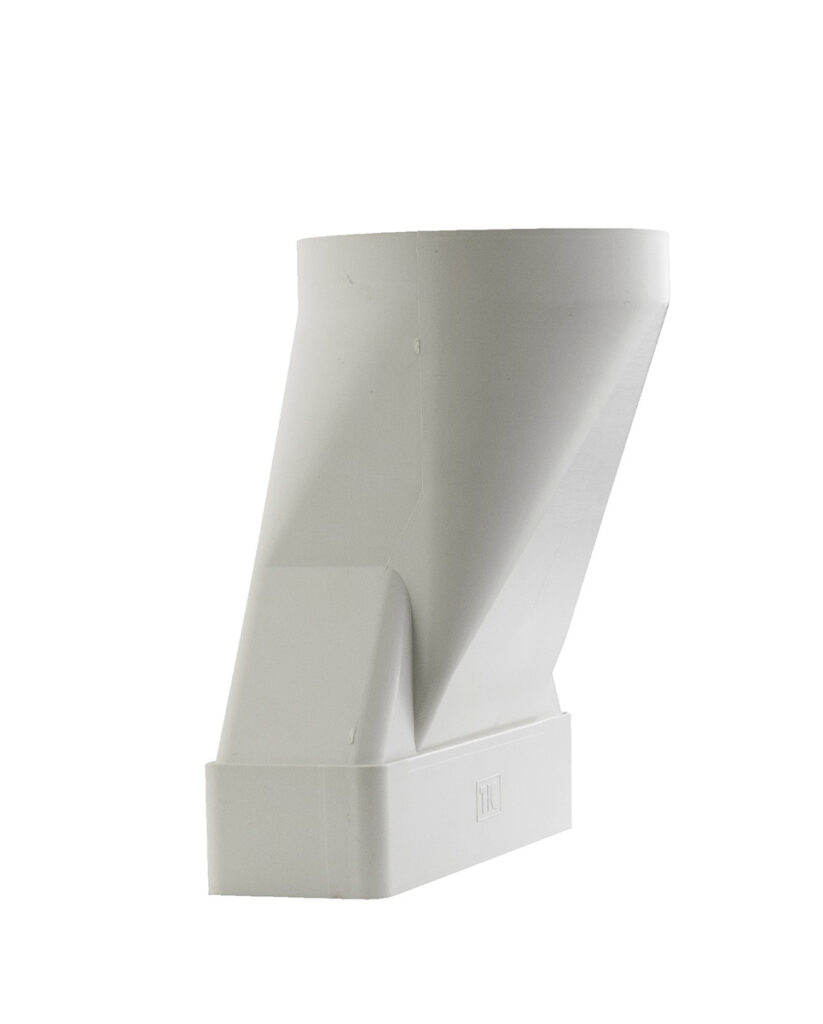

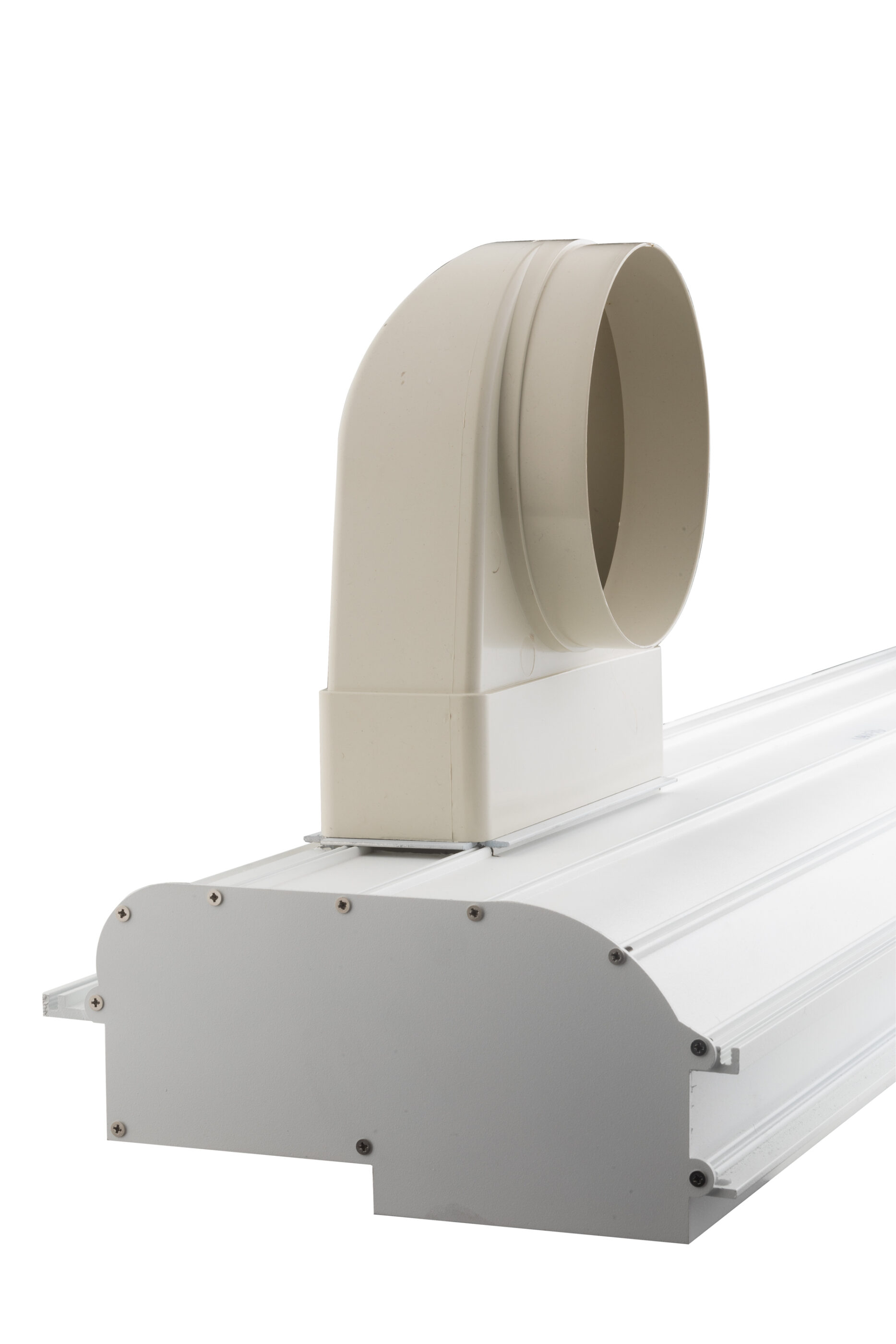

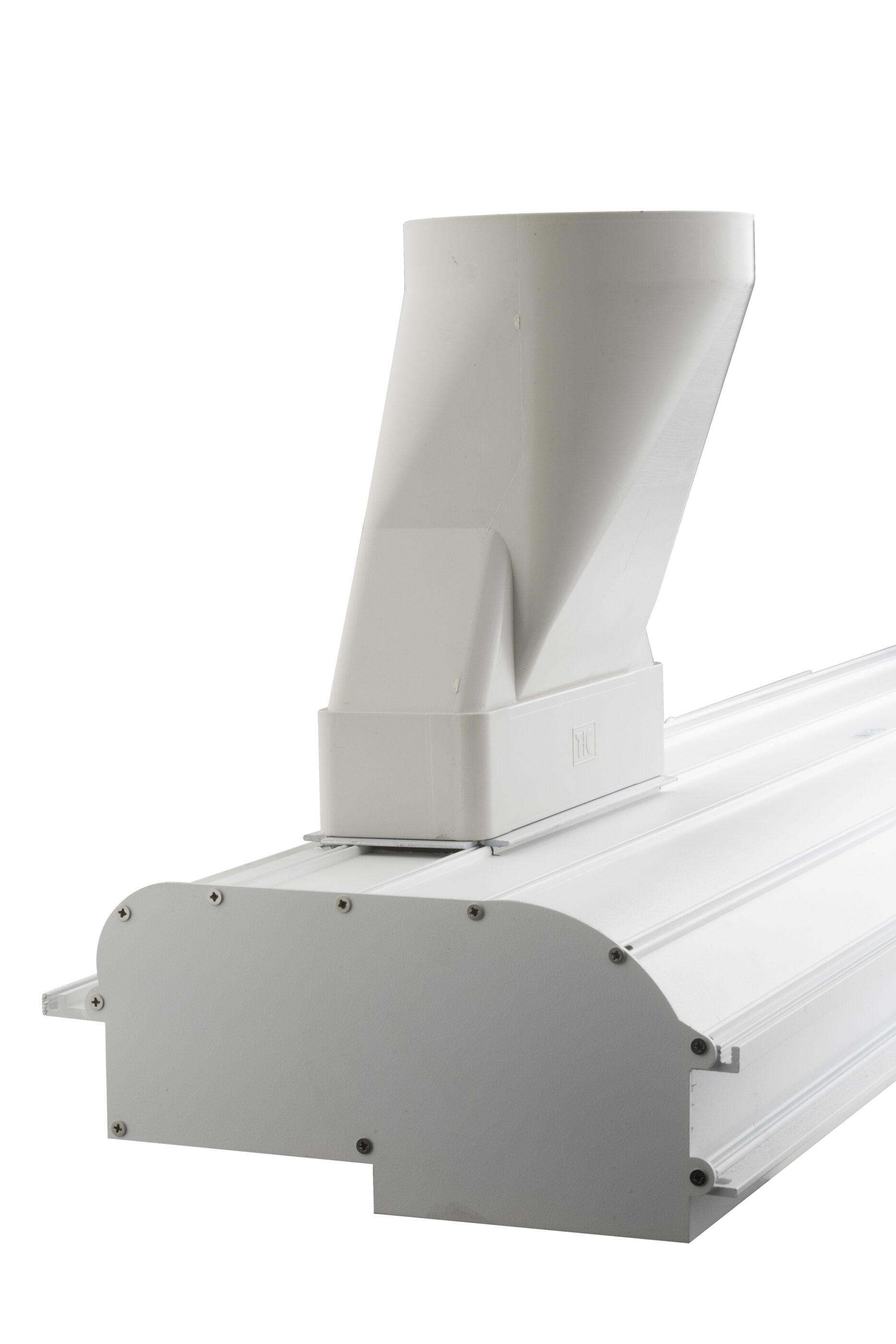

ACCESSORIES  …  Exhaust duct and spigot: 4223

VOLTAGE  …  240v

DRIVER  …  remote driver required

DOWNLOADS:

Datasheet

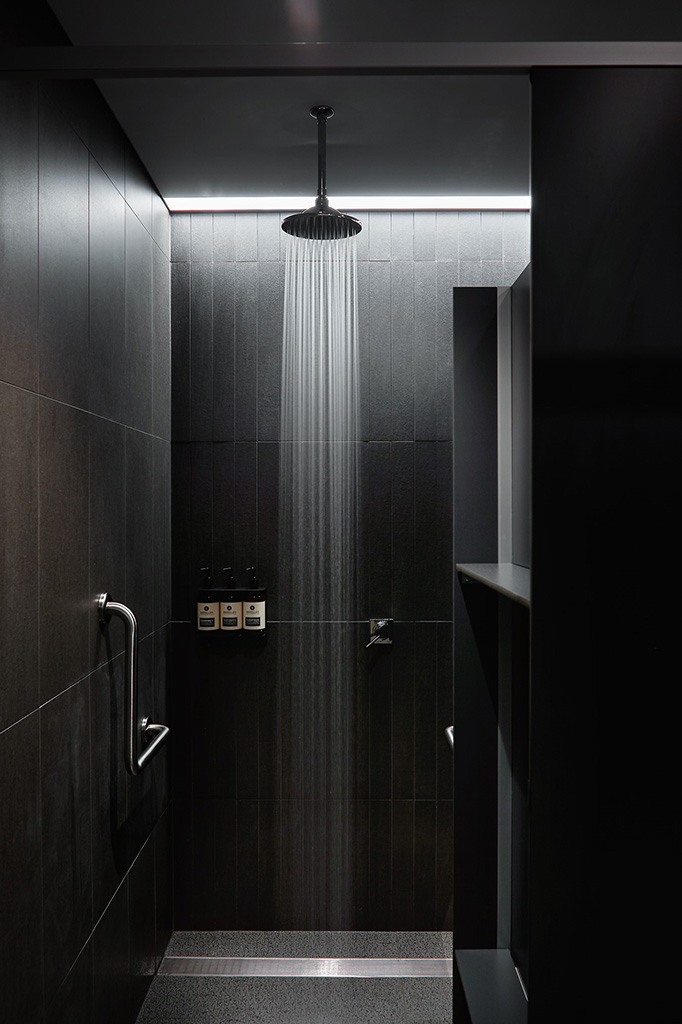

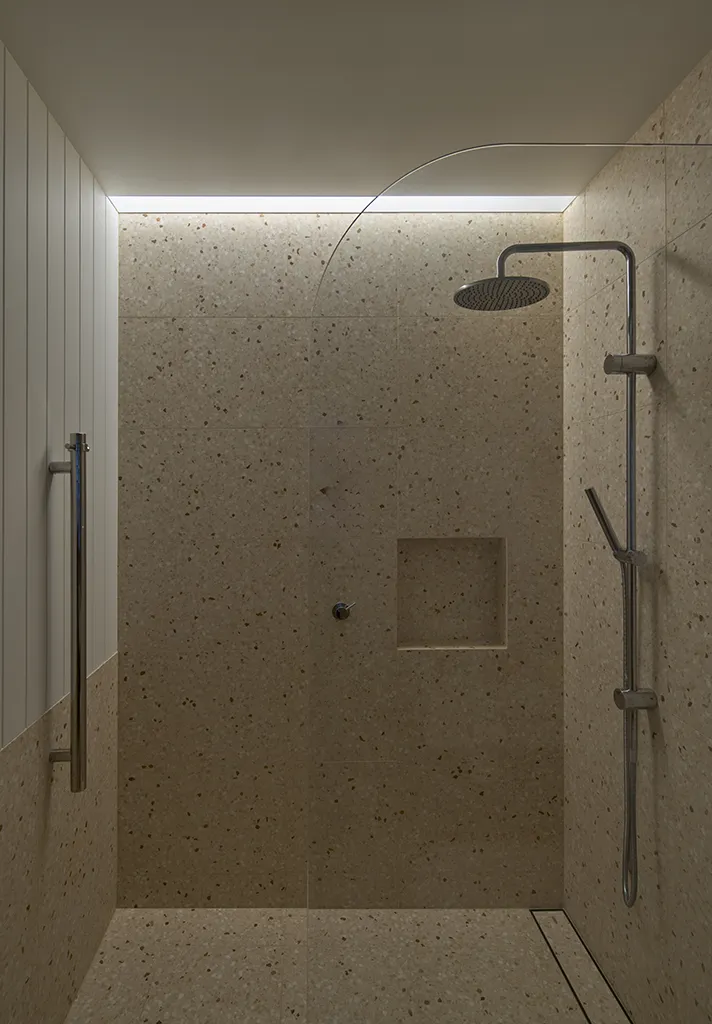

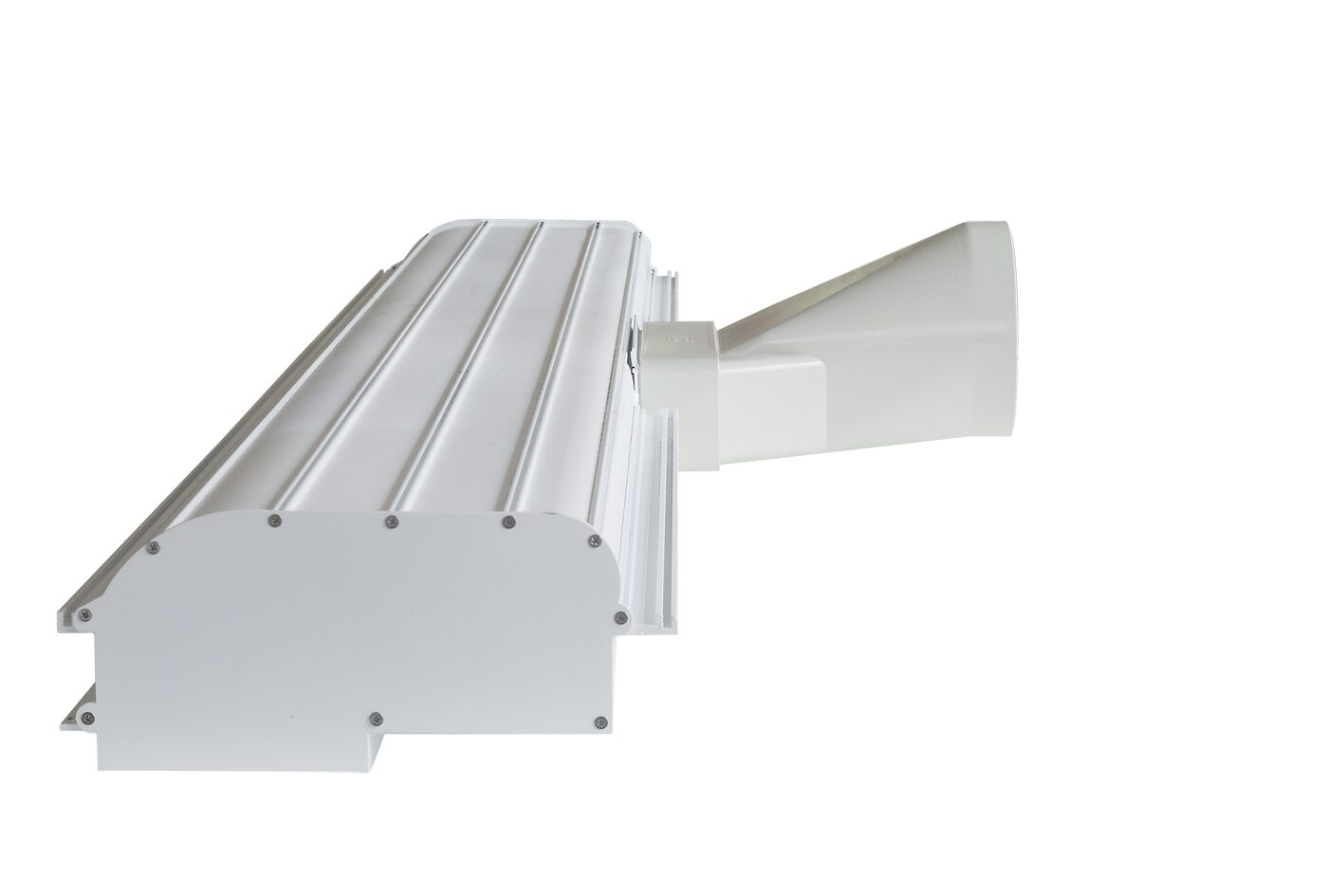

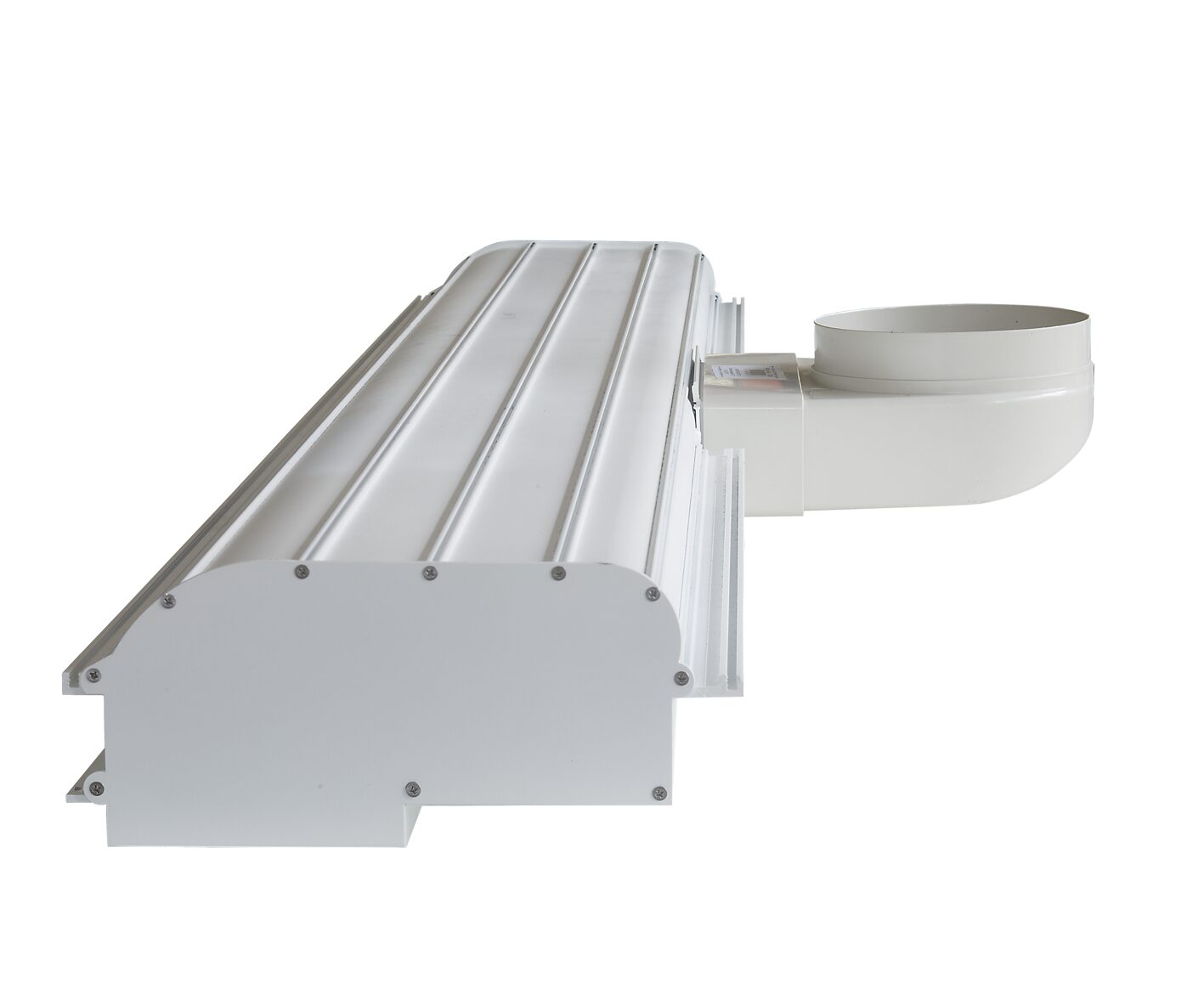

Ceiling recessed aluminium extrusion for general illumination or wall washing. 100m slot with curved reflector. The Horizon system can also be used in bathroom applications. With the inclusion of the Exhaust Duct accessory and IP rated light source the Horizon is then capable of having inline ducting connected to the rear of the extrusion. The internal light source is magnetically fixed and removable. Custom lengths up to 6 meters.
