Skyline Mirage

Linear Wall Washing Extrusion

Features:

50 mm aperture with curved reflector

Constructed of extruded aluminium

Magnetically fixed LED light source

High output (15W p/m) or Super High Output (29W p/m) versions'

Made to order, custom lengths up to 6 metres. Lead time on enquiry, minimum 3-6 weeks.

Finishes --

white

CODE  …  4225

WATTAGE  …  29 W

CCT and LUMEN OUTPUT  …  2700K - 2805Lm / M 3000K - 2805Lm / M 4000K

CRI  …  80

IP RATING  …  IP20

DIMMABLE  …  Yes, 0.10V, DALI

VOLTAGE  …  24vDC

DRIVER  …  remote driver required

DOWNLOADS:

Datasheet
Cut Sheet Form

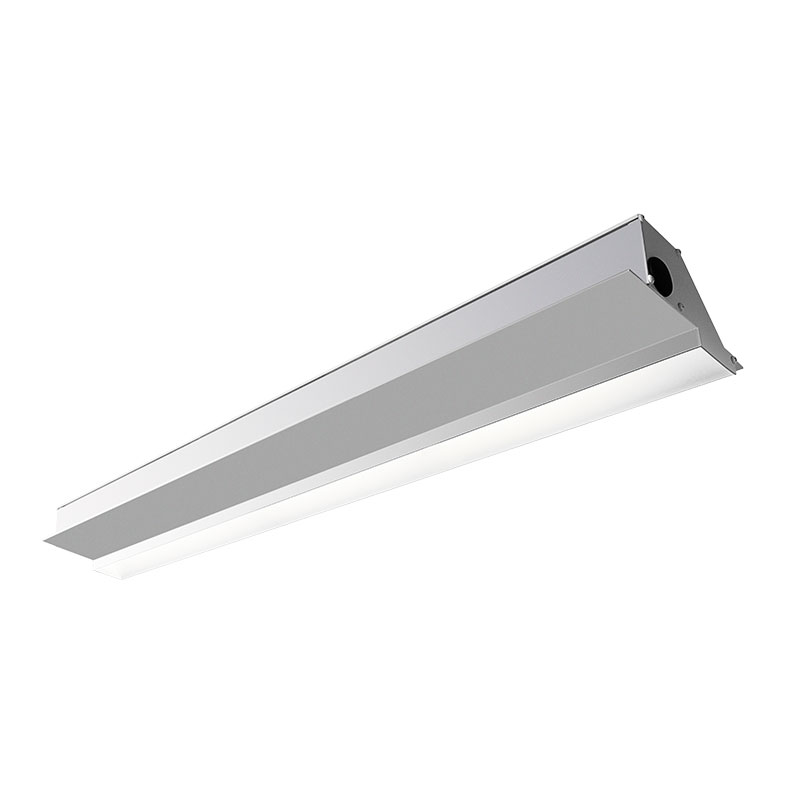

Ceiling recessed extruded aluminium extrusion for wall washing. 50mm slot with curved inner reflector. Magnetically fixed, removable LED lightsource.
