Extrusion – PT50 Shadowline
Linear aluminium extrusion designed for wall ceiling junctions
Features:

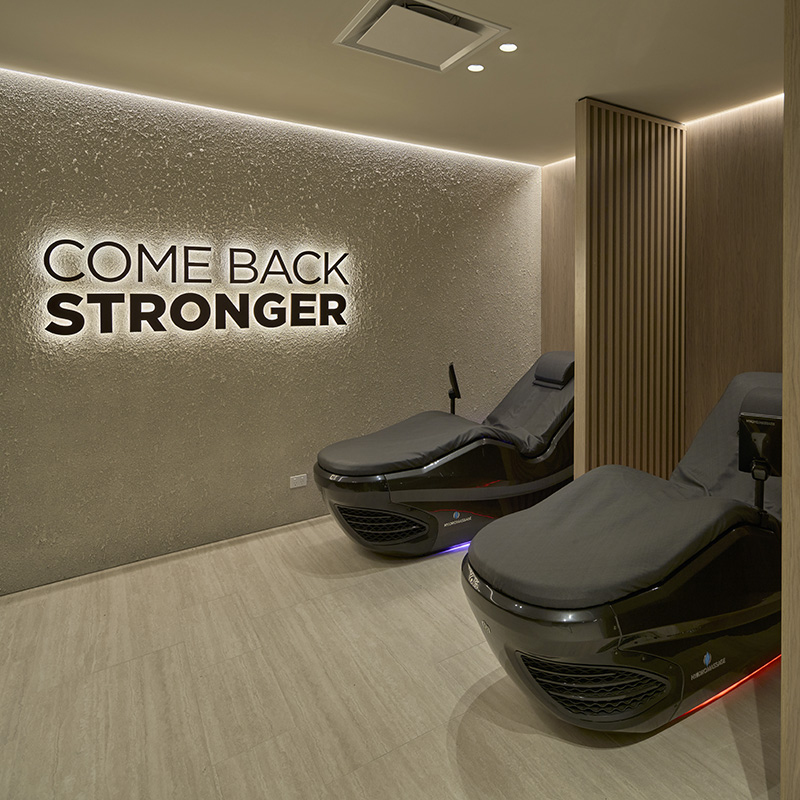

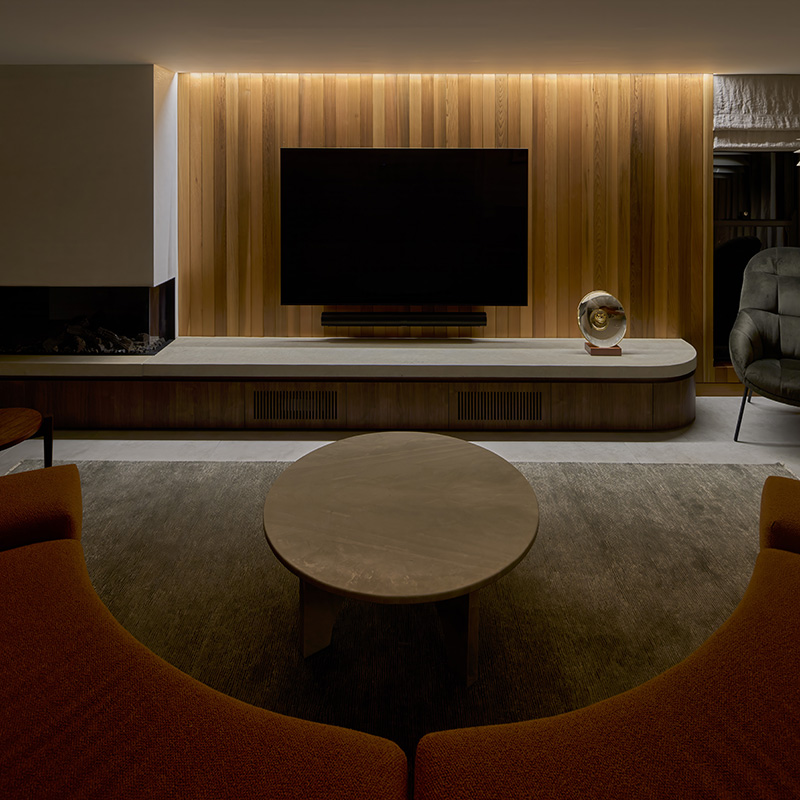

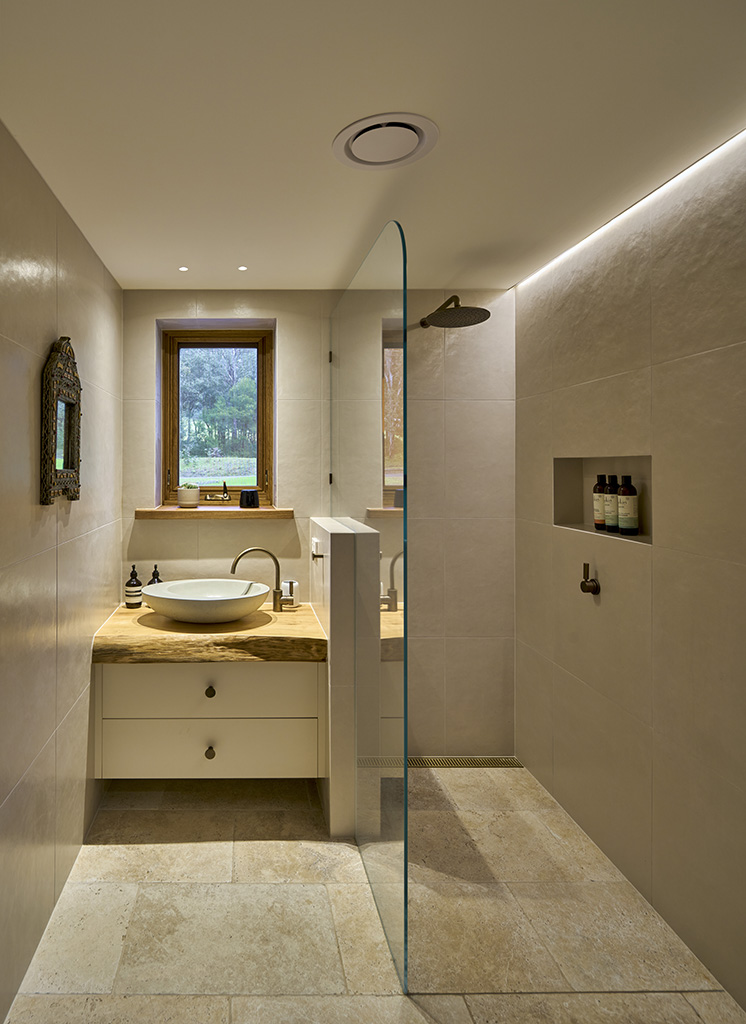

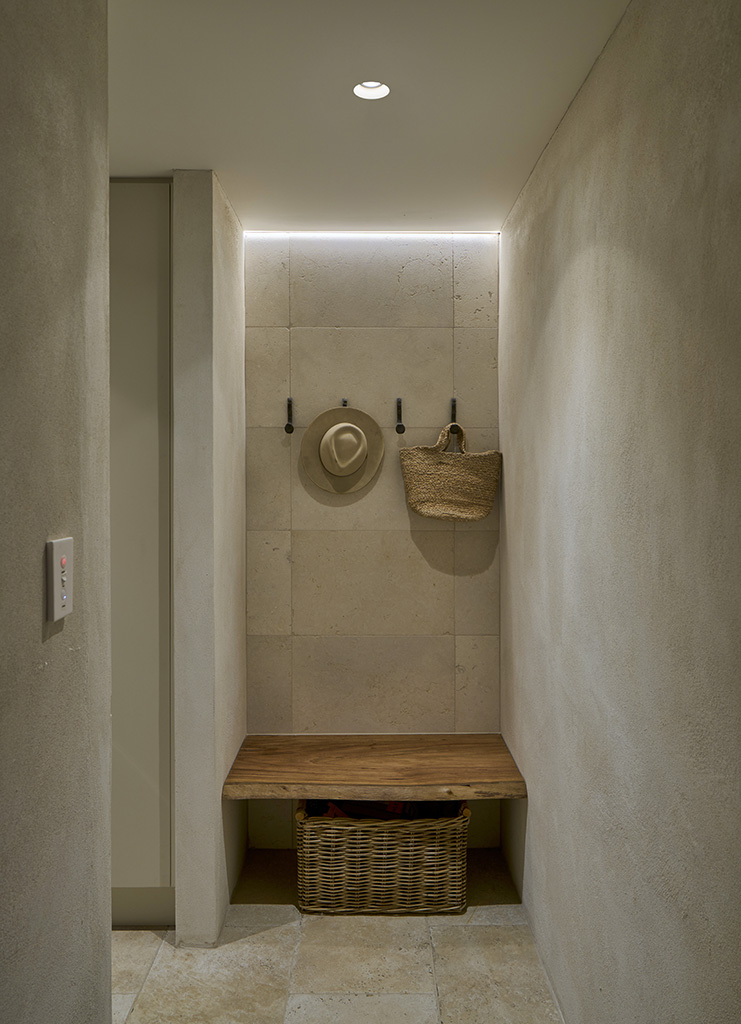

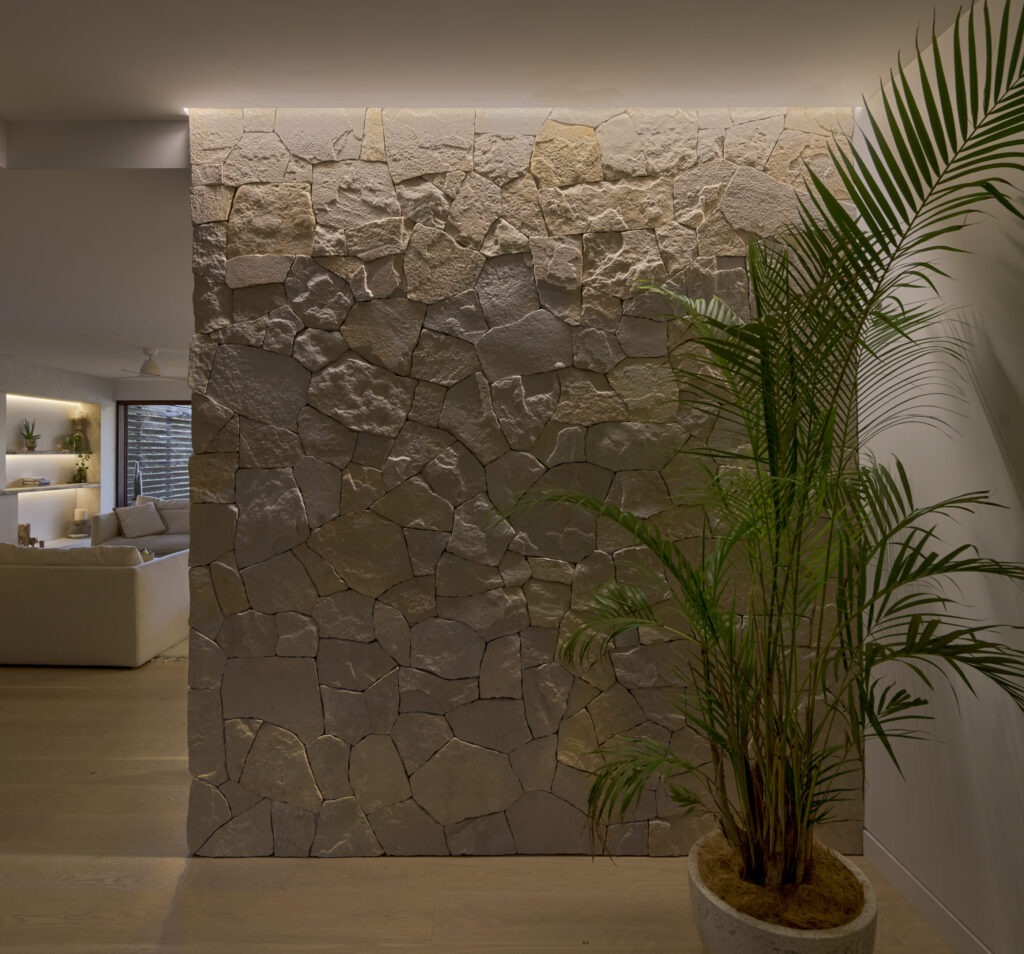

PT50 Shadowline is designed to create a clean perimeter shadow line and lighting option to Wall/Ceiling junctions. It can be used with either set plasterboard ceilings or suspended grid ceilings.
Shadowline incorporates a dedicated opal diffuser and can be optioned with either high output or super high output LED ribbon. Available in either 1500mm or 3000mm lengths.
Please note a minimum 3 week lead time for White finish.
Finishes --
anodised aluminium, white
CODE … 5019 - 1500mm, 2568 - 3000mm
CCT and LUMEN OUTPUT … High Output - 1464 Lm/M Super High Output - 2805 Lm/M
CRI … 82
IP RATING … IP20, IP44
DIMMABLE … Yes, 0.10V, DALI
VOLTAGE … 24 V dc
DRIVER … remote driver required
